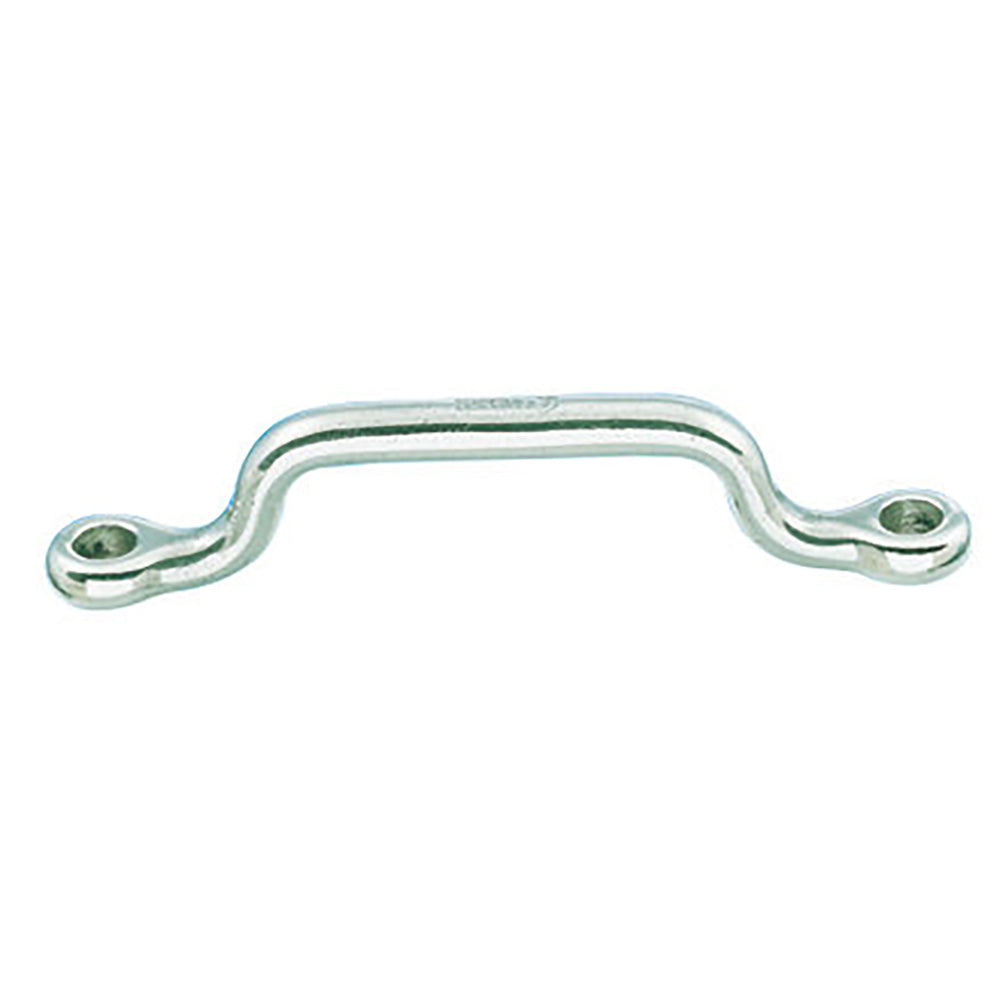

Webbing Eye Strap - 4mm Diameter - 5/32" - 56mm Spacing - 2-13/64"

Features:

  • Drop-forged webbing eye straps with high-quality stainless steel (316L)
  • Outstanding strength
  • Specific use for webbing

Applications:

  • The perfect solution to attach webbing

Specifications:

  • Materials: 316L stainless steel grade
  • Weight: (lb) 0.015 / (g) 7

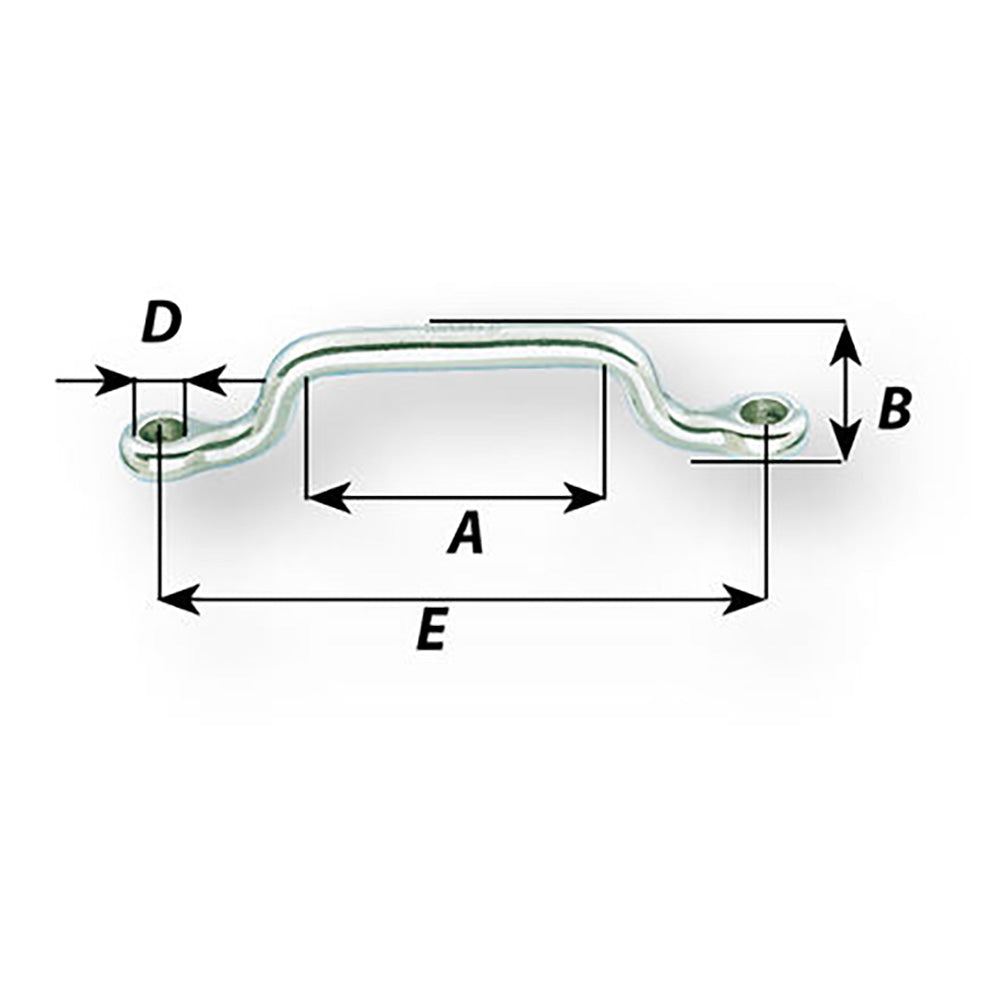

Dimensions:

  • A: (inch) 1 7/64" / (mm) 28
  • B: (inch) 13/64" / (mm) 5
  • D diameter: (inch) 5/32" / (mm) 4
  • E: (inch) 2 13/64" / (mm) 56

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
