Wichard 10mm Eye Nut - Thread M10 x 150mm [6355W]

$61.67 $72.55
Shipping calculated at checkout.

Delivery and Shipping

Non-Oversized Items

  • Standard (2-8 days) $9.95 to contiguous 48 states
  • 2-Day (2-3 days) $19.95 to contiguous 48 states
  • Overnight (1-2 days) $49.95 to contiguous 48 states

Oversized Items

  • UPS Ground (2-8 days) $95.00 to contiguous 48 states

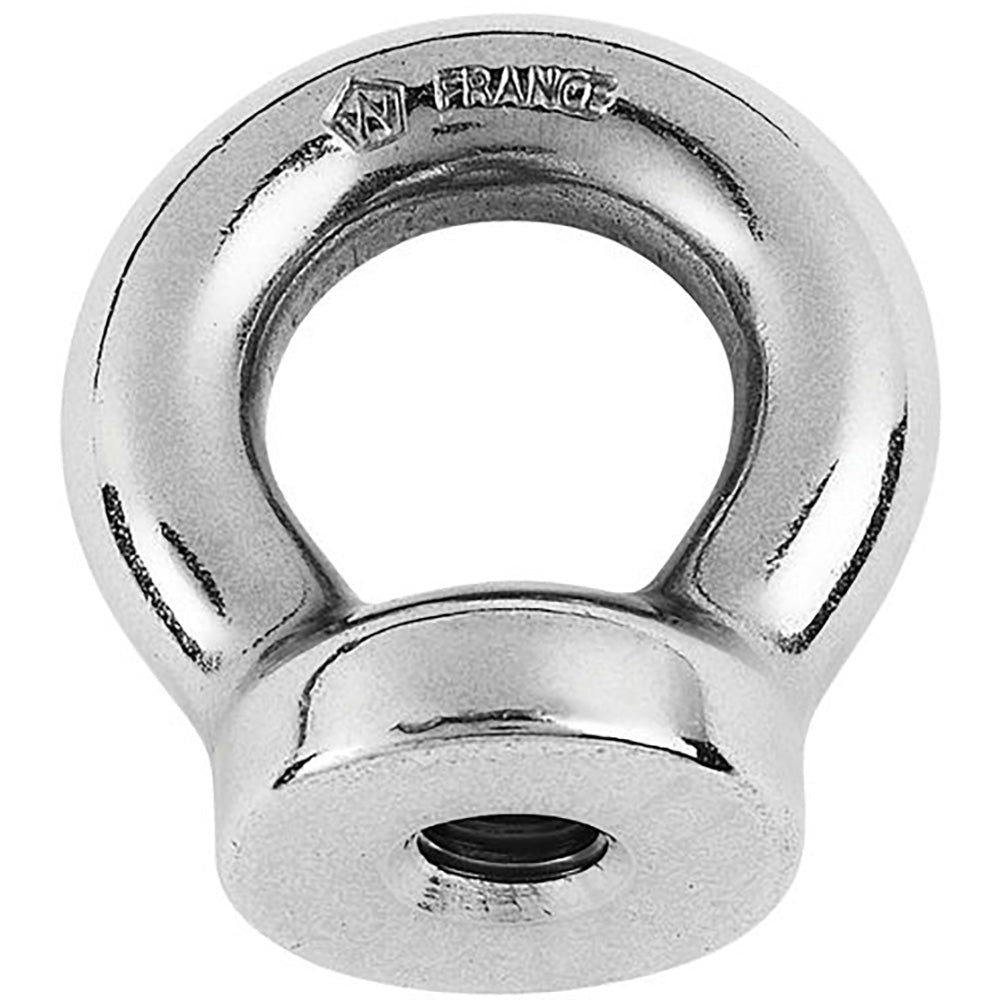

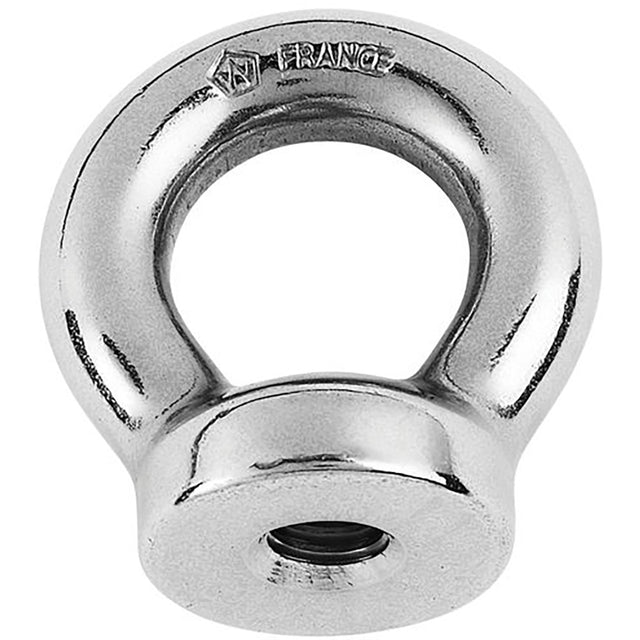

10mm Eye Nut - Thread M10 x 150mm

Features:

  • A complete range of single-piece forged products for fastenings applications
  • Outstanding breaking loads
  • Available in different sizes

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Breaking load: (lb) 10580 / (kg) 4800
  • Weight: (lb) 0.218 / (g) 99

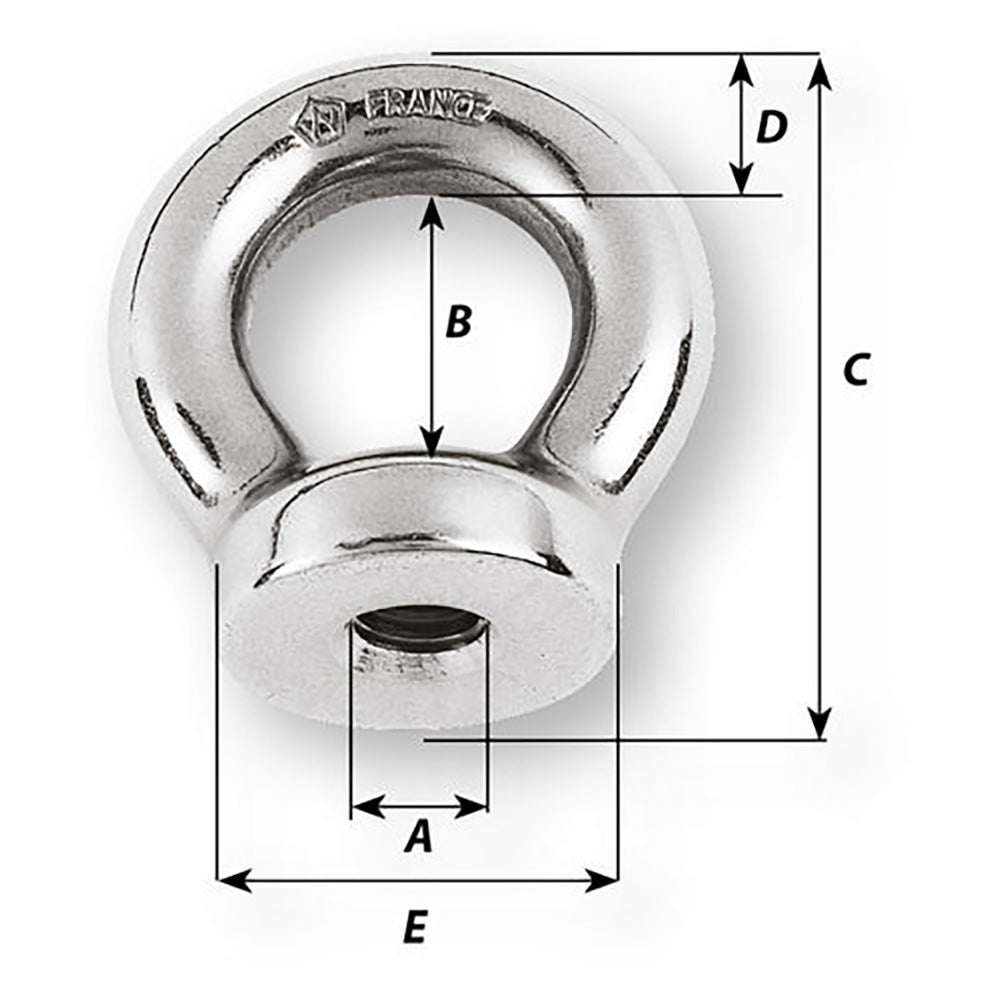

Dimensions:

  • A: (mm) M10 x 150
  • B: (inch) 55/64" / (mm) 22
  • C: (inch) 1 13/16" / (mm) 46
  • D: (inch) 25/64" / (mm) 10
  • E: (inch) 1 7/64" / (mm) 28

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
