Inverter 24/250 120V VE.Direct Nema 5-15R

The VE.Direct port can be connected to:

  • A computer (VE.Direct to USB interface cable needed)
  • Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut -off and restart levels
  • Dynamic cut -off: load-dependent cut-off level
  • Output voltage 2 10 - 245V
  • Frequency 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level

Monitoring - In- and output voltage, % load and alarms

Proven reliability - The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against o verheating, whether due to over load or high ambient temperature.

High start-up power - Needed to start loads such as power co nverters for LED lamps, halogen lamps or electric tools.

ECO mode - When in ECO mode , the inverter will switch to stan dby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds) . If the load exceeds a preset level, the inverter will remain on.

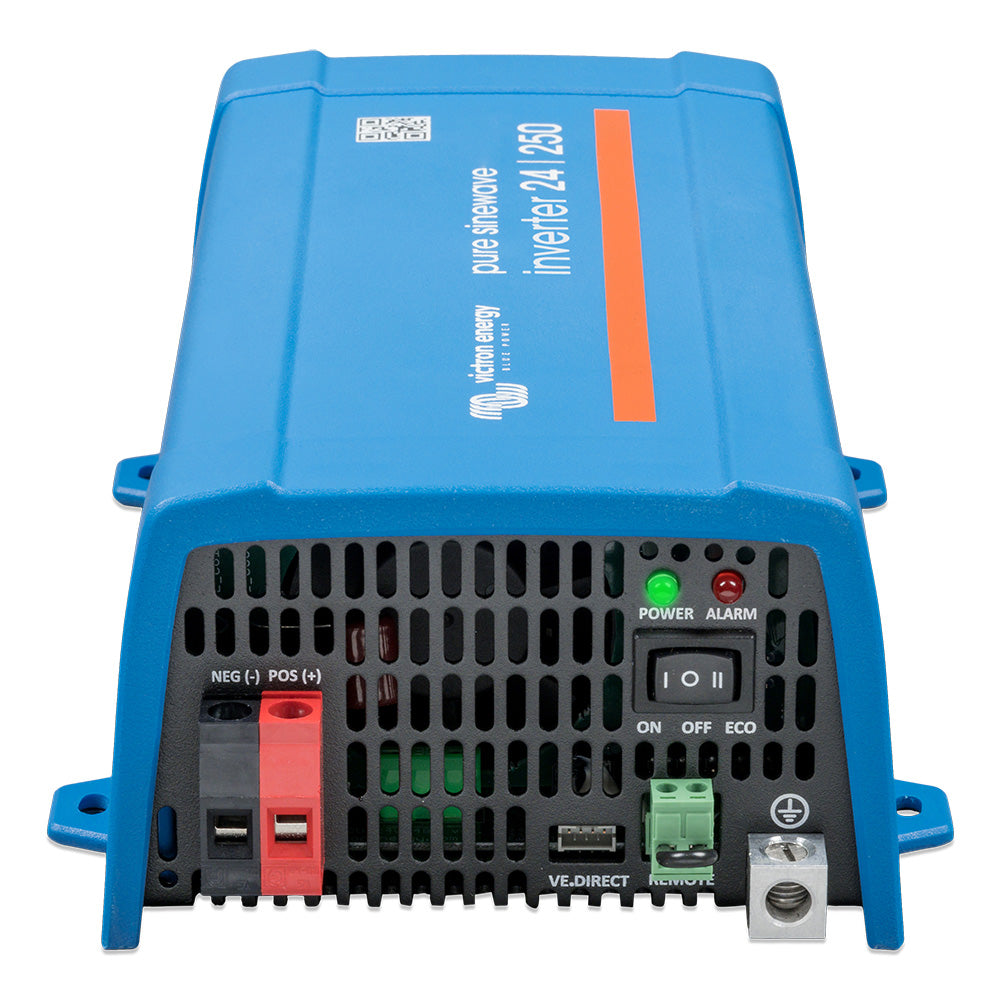

Remote on/off - A remote on/off switch can be connected to a two-pole connecto r, or between battery plus and the left-hand contact of the two-pole connector.

To transfer the load to another AC source: the automatic transfer switch - For our low power inverters , we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

DC connection with screw terminals - No special tools needed for installation

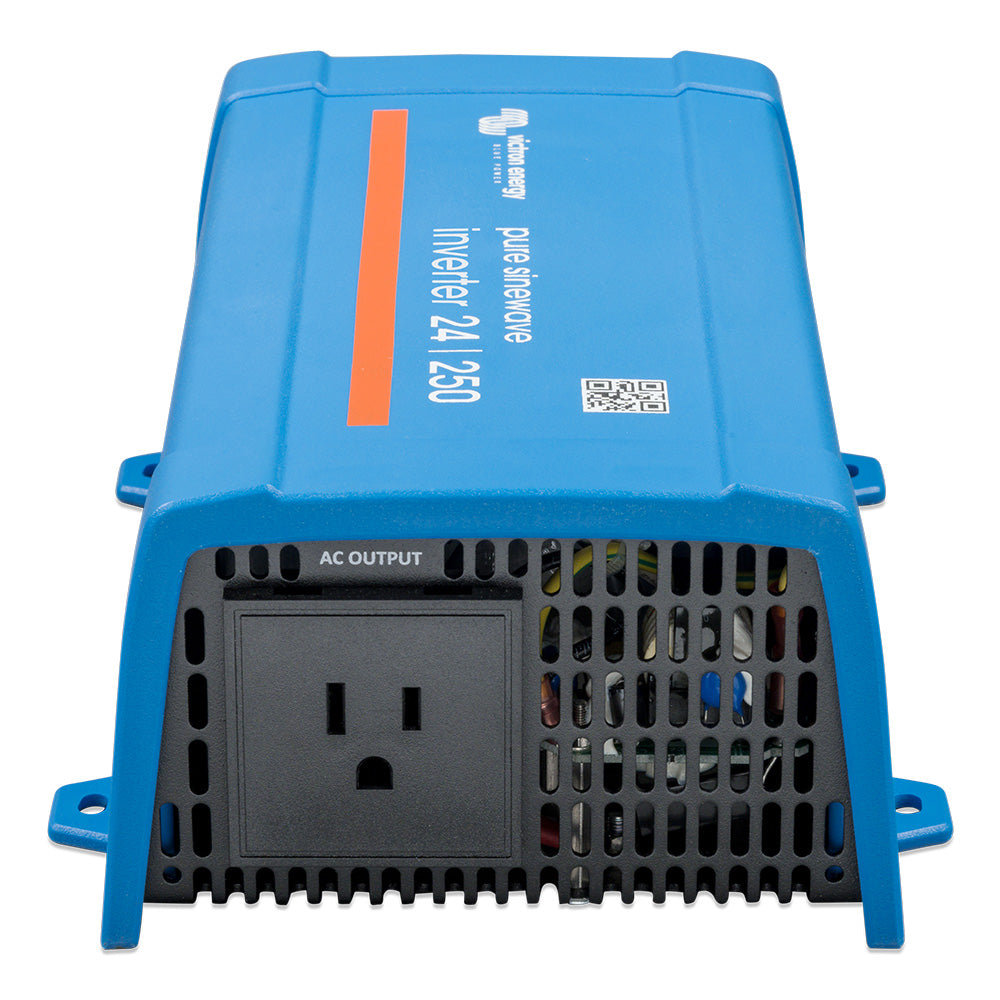

Output Sockets - Nema 5-15R

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

  • AC Connection Type: Outlet
  • DC Connection Type: Hardwire
  • GFCI: Yes
  • Inverter Cont. Output Wattage: 175W
  • Inverter Input Voltage: 24VDC
  • Inverter Output Voltage: 120VAC
  • Inverter Surge Rating: 400W
  • Outlet Qty: 1 NEMA 5-15R
