RAM Mount Universal Wheelchair Ball Base [RAM-238-WCT]

$29.99 $33.49
Shipping calculated at checkout.

Delivery and Shipping

Non-Oversized Items

  • Standard (2-8 days) $9.95 to contiguous 48 states
  • 2-Day (2-3 days) $19.95 to contiguous 48 states
  • Overnight (1-2 days) $49.95 to contiguous 48 states

Oversized Items

  • UPS Ground (2-8 days) $95.00 to contiguous 48 states

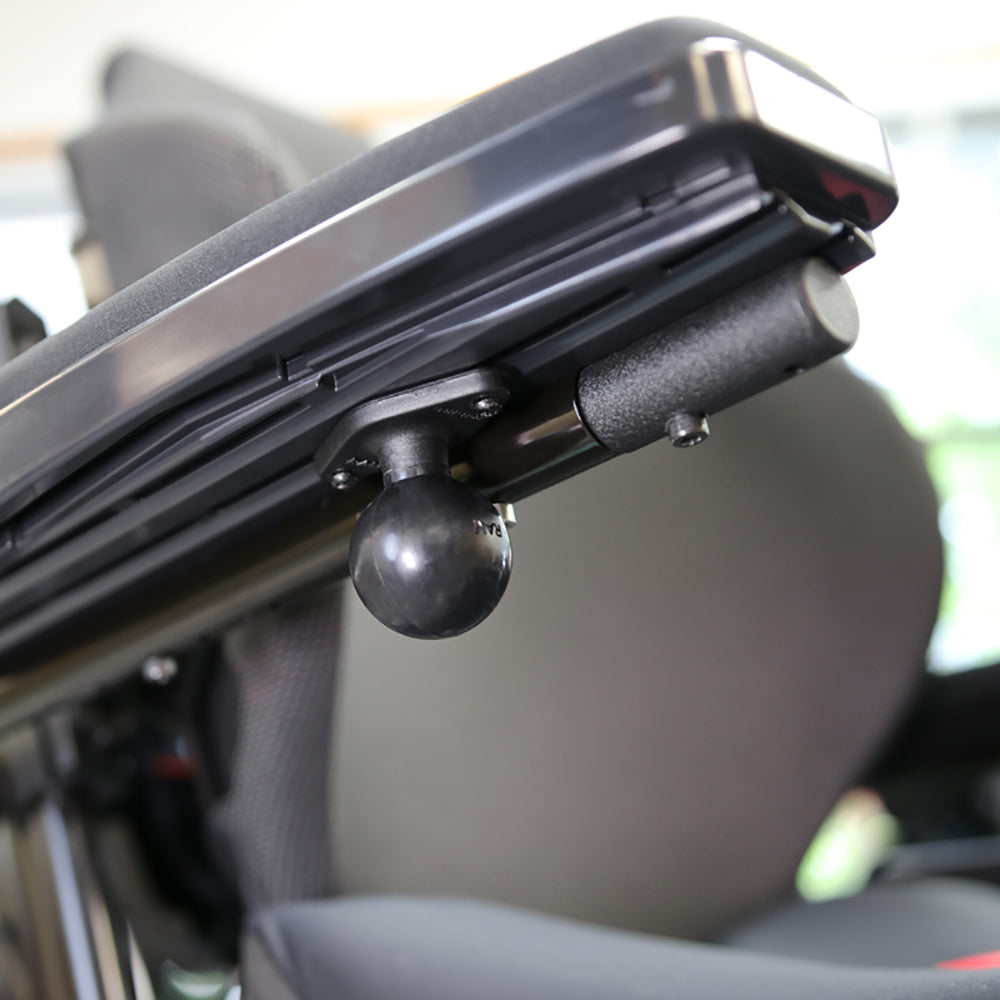

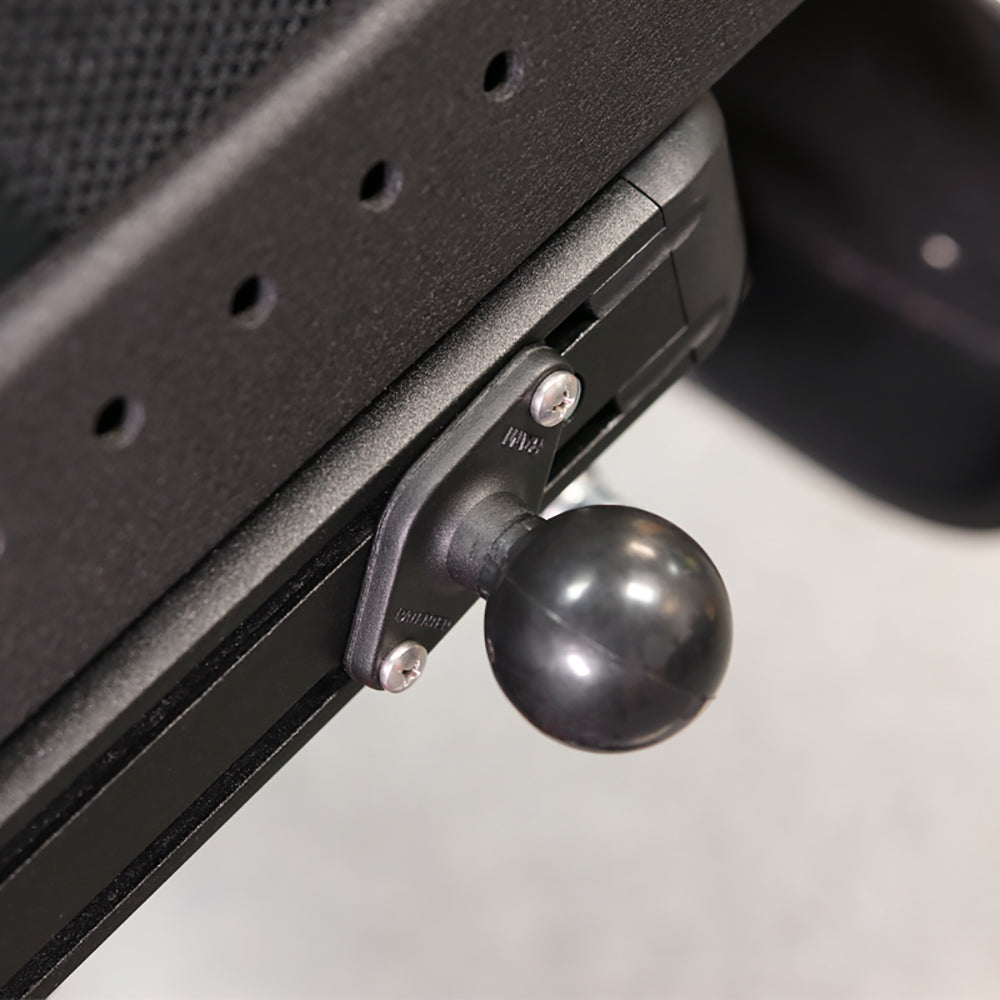

RAM® Universal Wheelchair Ball Base

This RAM® ball base features a universal hardware pack that accommodates the arm and seat tracks on most major wheelchair brands including Invacare, Permobil, and Quickie, as well as any other universal mounting point. Pair with a variety of compatible RAM® arms and extensions to build a custom mount to meet your specific needs.

Specifications:

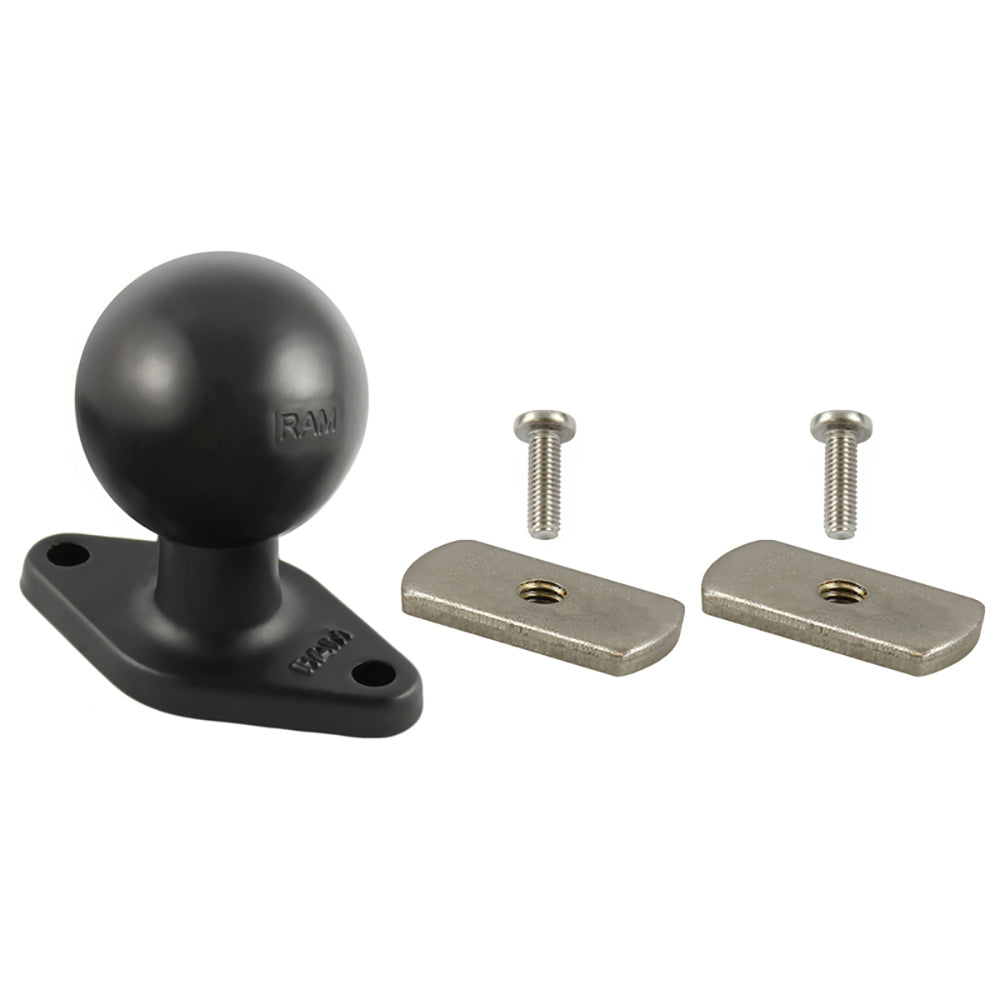

Package Includes:

  • (QTY. 2) #10-32 x 1/2" Machine Screw
  • (QTY. 2) #10-32 T-Nut (3/8" x 5/8")
  • (QTY. 2) #10-32 T-Nut (1/2" x 1")
  • (QTY. 2) M4 x 12mm Machine Screw
  • (QTY. 2) M4 x 20mm Machine Screw
  • (QTY. 2) M4 Stainless Steel Washer
  • (QTY. 2) M4 Nylock Nut
  • Material: Powder Coated Marine Grade Aluminum
  • Ball Size: C Size 1.5" Rubber Ball
  • Weight: 0.3 lbs.

Quick Guide (pdf)
