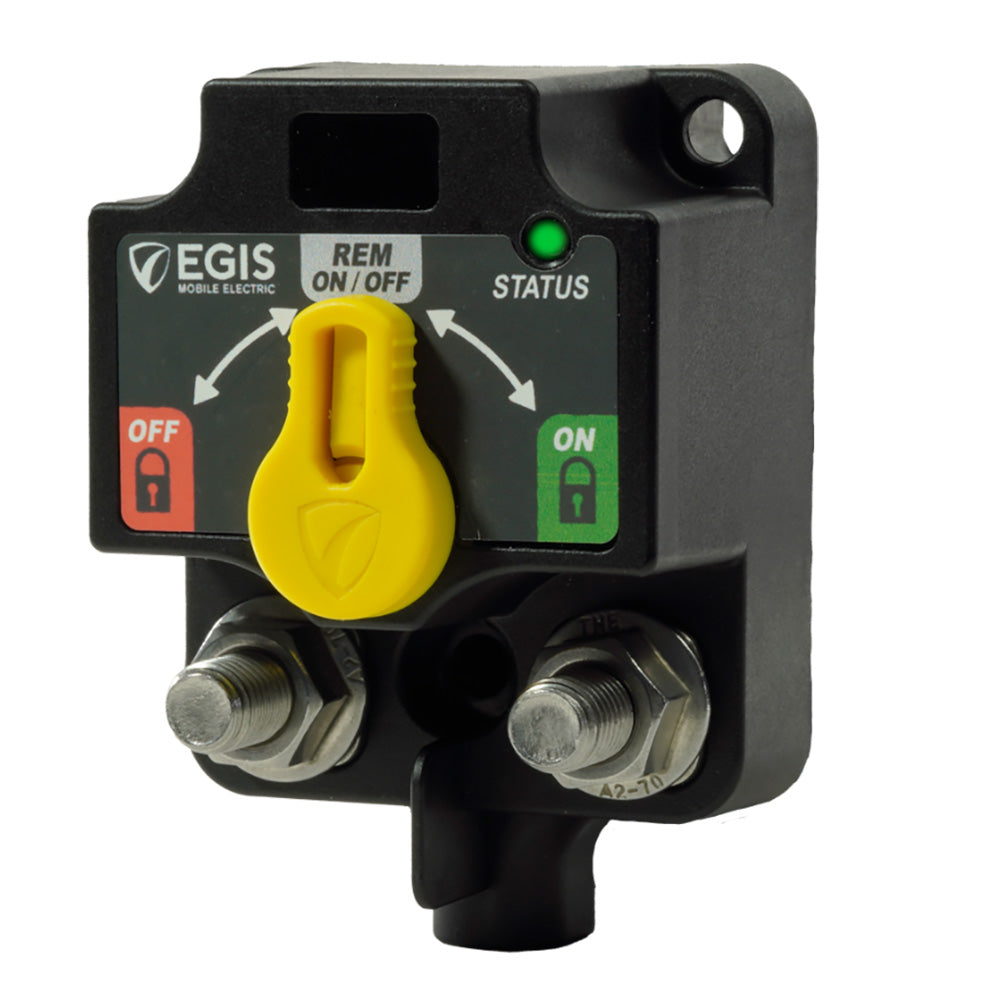

Egis XD Single LVD (Low Voltage Disconnect) w/Knob - Tinned Wires [8710-1700]

$141.13 $205.70
Shipping calculated at checkout.

Delivery and Shipping

Non-Oversized Items

  • Standard (2-8 days) $9.95 to contiguous 48 states
  • 2-Day (2-3 days) $19.95 to contiguous 48 states
  • Overnight (1-2 days) $49.95 to contiguous 48 states

Oversized Items

  • UPS Ground (2-8 days) $95.00 to contiguous 48 states

XD Single Low Voltage Disconnect with Knob - Tinned Wires

Features:

  • Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
  • Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay On or OFF for Servicing
  • Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal
  • Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing
  • LED Indicator Provides Helpful Diagnostics
  • Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown

Specifications:

  • Type: Electric
  • Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs
  • UPC: 850067590132
