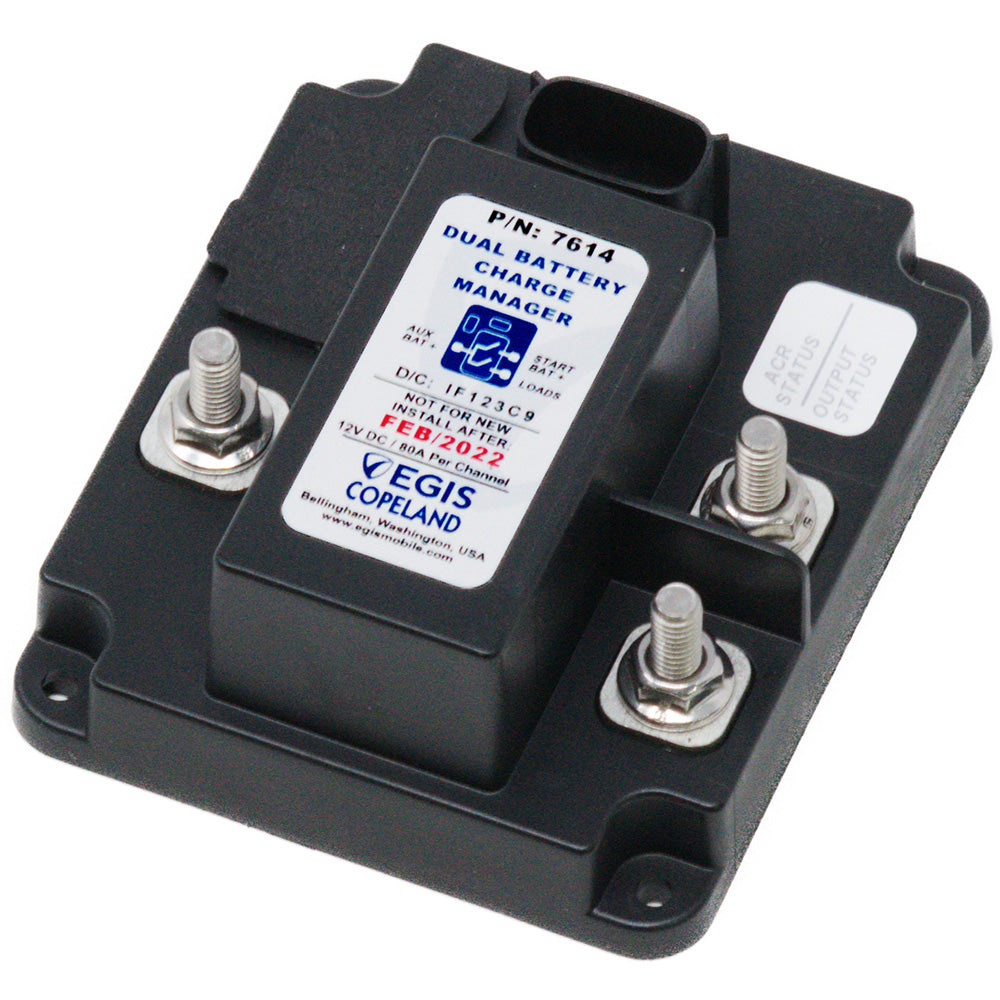

Egis Dual Battery Charge Manager - 12V [7614]

$142.78 $231.40
Shipping calculated at checkout.

Delivery and Shipping

Non-Oversized Items

  • Standard (2-8 days) $9.95 to contiguous 48 states
  • 2-Day (2-3 days) $19.95 to contiguous 48 states
  • Overnight (1-2 days) $49.95 to contiguous 48 states

Oversized Items

  • UPS Ground (2-8 days) $95.00 to contiguous 48 states

Dual Battery Charge Manager - 12V

One Product Handles Two Functions for both auxiliary battery charge management and timed load shedding for add-on circuits.

Prevents add-on equipment from draining batteries / maximizes and extends operational readiness

Protects sensitive on-board electronics via optional under/over voltage shutdown and start event isolation.

Features:

  • Monitors battery voltage and disconnects the load from the battery to prevent further discharge. Lowest off-state current draw (1.3 mA) available.
  • Flexible Control Options via Ignition Key, alternator voltage sense, or both.
  • Simple & Robust Installation: Sealed plug with optional long wire leads. A single device reduces installation time and costs, and points of potential failure
  • Kill Switch control input options for service technicians, emergency OFF
  • Adjustable OFF Time Delay & Low Voltage Cut-Off: 0 Seconds to 4 hours, Switch only mode, LVD only mode, 11.0, 11.5, 12.0 Vdc cutoff levels.
  • Remote and on-board diagnosis indicators to simplify troubleshooting
  • Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere. Internal temperature overload protection
  • Start Isolation input protects sensitive add-on equipment from the engine starting event.
  • Meets Stringent OEM Standards for electrical transient self-protection
  • 4 Year Industry-Leading Warranty

Specifications:

  • Type: Electric

Brochure (pdf)
