C. Sherman Johnson Jaw/Jaw Open Body Turnbuckle - 1/2-20 Thread [45-100]

$177.97 $273.25
Shipping calculated at checkout.

Delivery and Shipping

Non-Oversized Items

  • Standard (2-8 days) $9.95 to contiguous 48 states
  • 2-Day (2-3 days) $19.95 to contiguous 48 states
  • Overnight (1-2 days) $49.95 to contiguous 48 states

Oversized Items

  • UPS Ground (2-8 days) $95.00 to contiguous 48 states

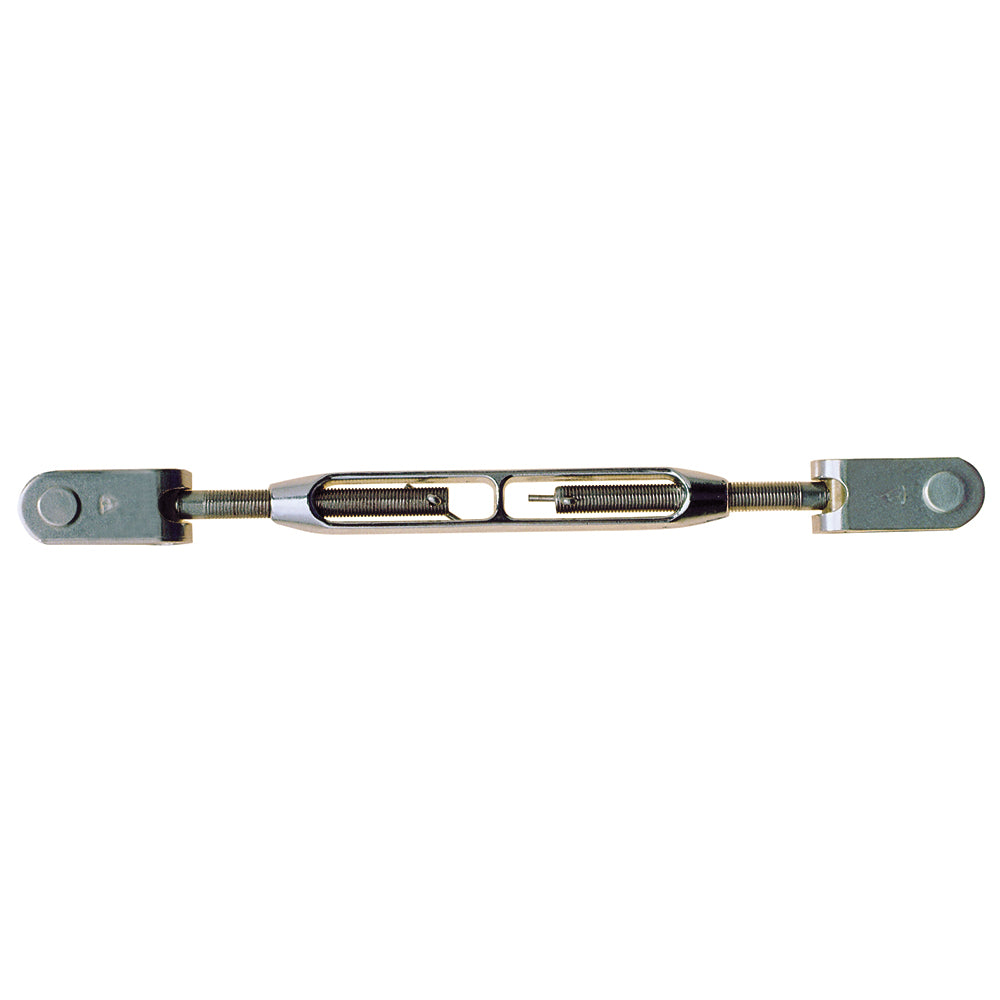

Jaw/Jaw Open Body Turnbuckle - 1/2-20 Thread

For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment.

Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.

Specifications:

  • Machine swage
  • Bronze body/ 316 stainless ends
  • Wire size: 5/16"
  • Breaking strength: 10,500 pounds
  • Safe working load: 4,200 pounds
  • Thread size: 1/2-20
  • Pin to pin length: 11-1/2" (closed) 15-1/2" (open)
  • Body length: 6-1/2"
  • Pin diameter: 1/2"
  • Weight: 1 pound
