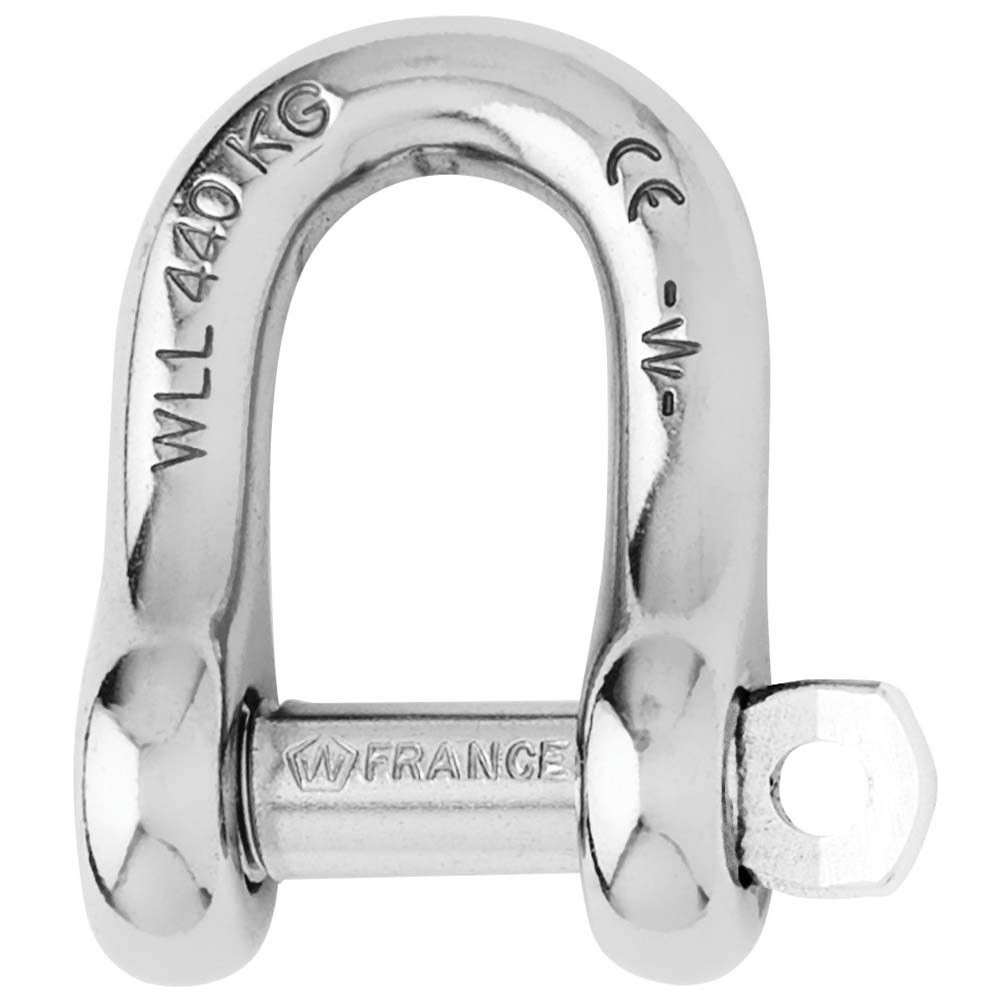

Captive Pin D Shackle - Diameter 8mm - 5/16"

Features:

  • Captive pin "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1580
  • Breaking load (lb) 7930
  • Weight (lb) 0.134

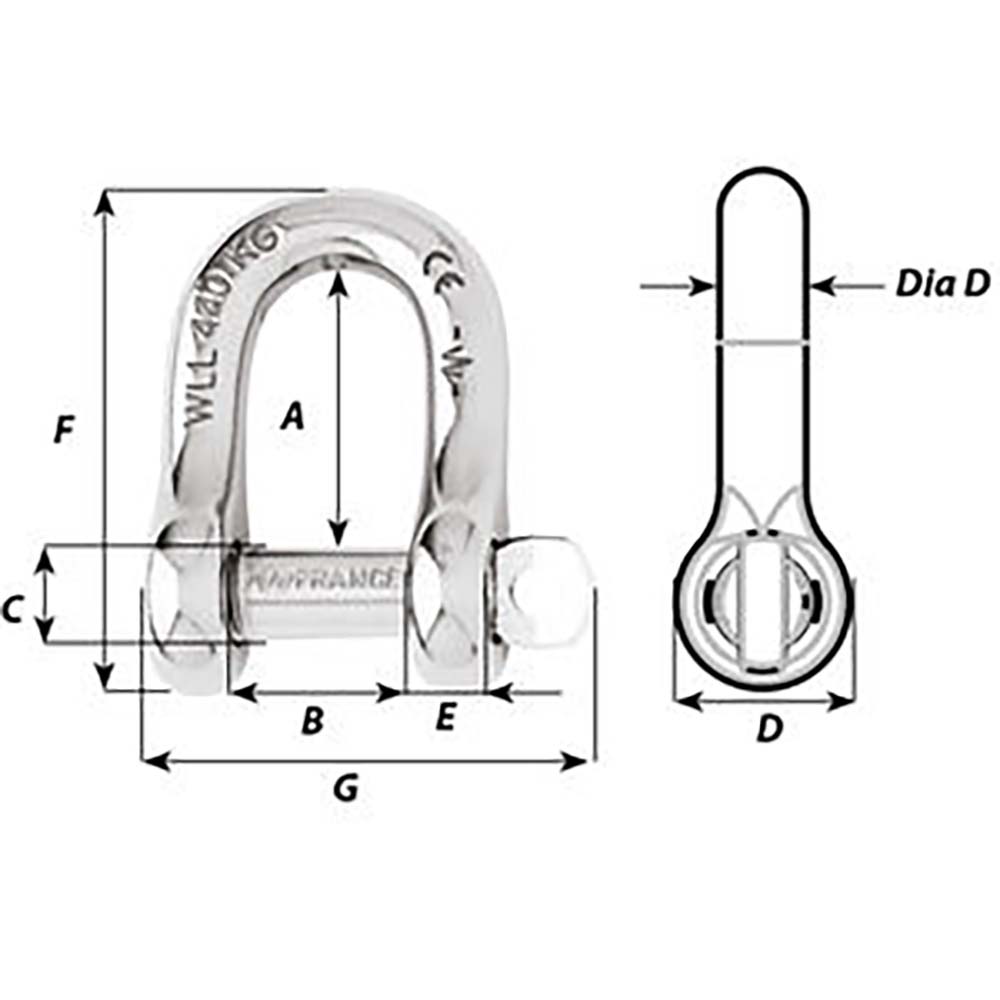

Dimensions (see 2nd image):

  • A (inch) 1-1/32"
  • B (inch) 5/8"
  • C (inch) 23/64"
  • D (inch) 45/64"
  • D diameter (inch) 5/16"
  • E (inch) 5/16"
  • F (inch) 1-27/32"
  • G (inch) 1-21/32"
