Hella Marine Easy Fit Step Lamp - Red w/Chrome Cap [958126201]

$20.27 $31.40
Shipping calculated at checkout.

Delivery and Shipping

Non-Oversized Items

  • Standard (2-8 days) $9.95 to contiguous 48 states
  • 2-Day (2-3 days) $19.95 to contiguous 48 states
  • Overnight (1-2 days) $49.95 to contiguous 48 states

Oversized Items

  • UPS Ground (2-8 days) $95.00 to contiguous 48 states

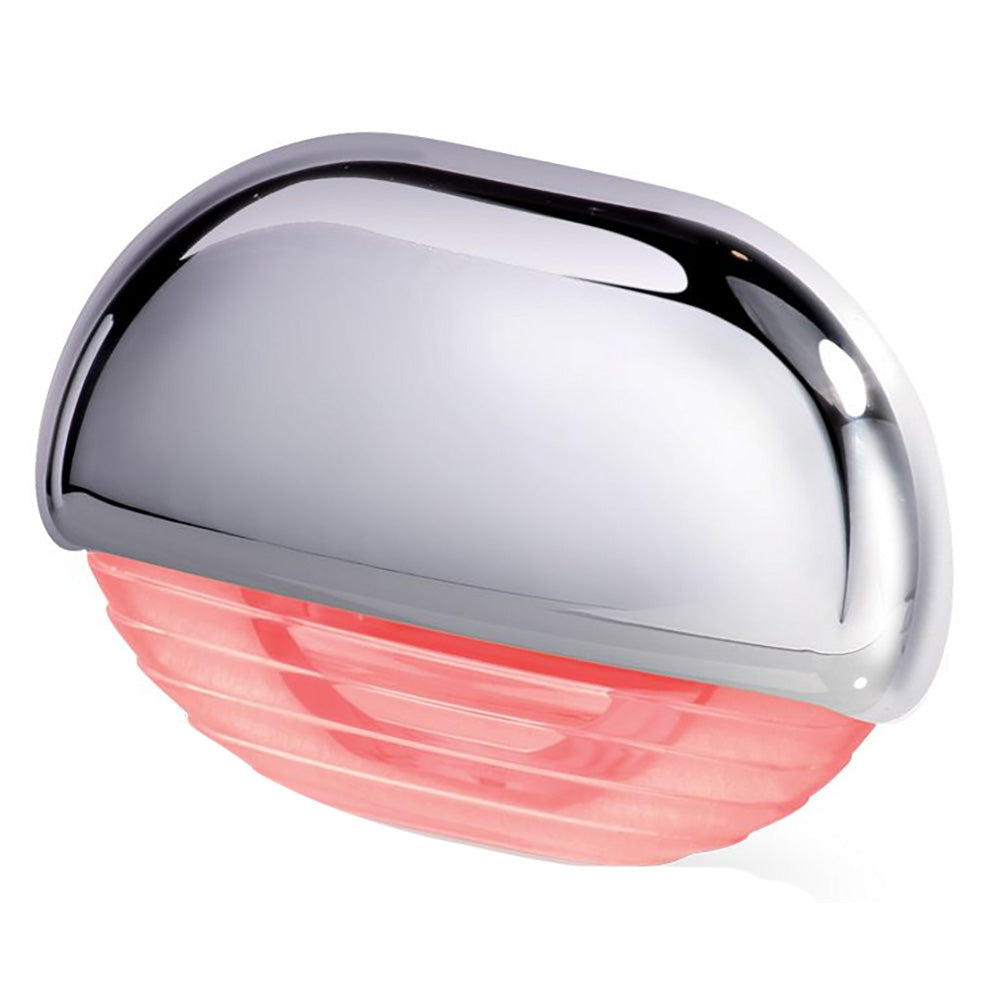

Easy Fit Step Lamp - Red with Chrome Cap

Attractive and timeless LED courtesy lighting for a wide variety of interior and exterior lighting applications.

Light is radiated downward at an angle of 30°. This lamp is ideal for illuminating onboard areas such as steps, stairs, toe kicks, storage areas, companion ways, deck fittings, signs, and switches without shining in the eyes.

Features:

  • The lamp is pre-wired with 100mm of marine cable and supplied with stainless steel screws
  • The optic appears clear until illuminated
  • Multivolt electronics ensure constant light output in 12V or 24V DC systems
  • Easy Fit Gen 2 series lamps are completely sealed, shock and vibration-resistant, and represent reliable 'fit and forget' technology

Specifications:

  • Lens Material: UV-resistant enhanced impact acrylic
  • Cap Material: Chrome-plated plastic
  • Light Color: Red
  • Cable: Pre-wired with 100mm of twin-core marine cable
  • Operating Voltage: Multivolt for optimum brightness in 12 and 24-volt systems
  • Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )
  • Degree of Protection: IP 67 - Completely Sealed
  • Weight: Stainless Cap - 30g (including cable). Plastic Cap - 15g (including cable)
  • Approvals: CE, RCM

Specifications:

  • Bulb Type: LED
  • Housing: Chrome
  • LED Color: Red
  • Voltage - Input Range (Volts): 12/24v
  • Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs
  • UPC: 9416325238331

Quick Guide (pdf)
