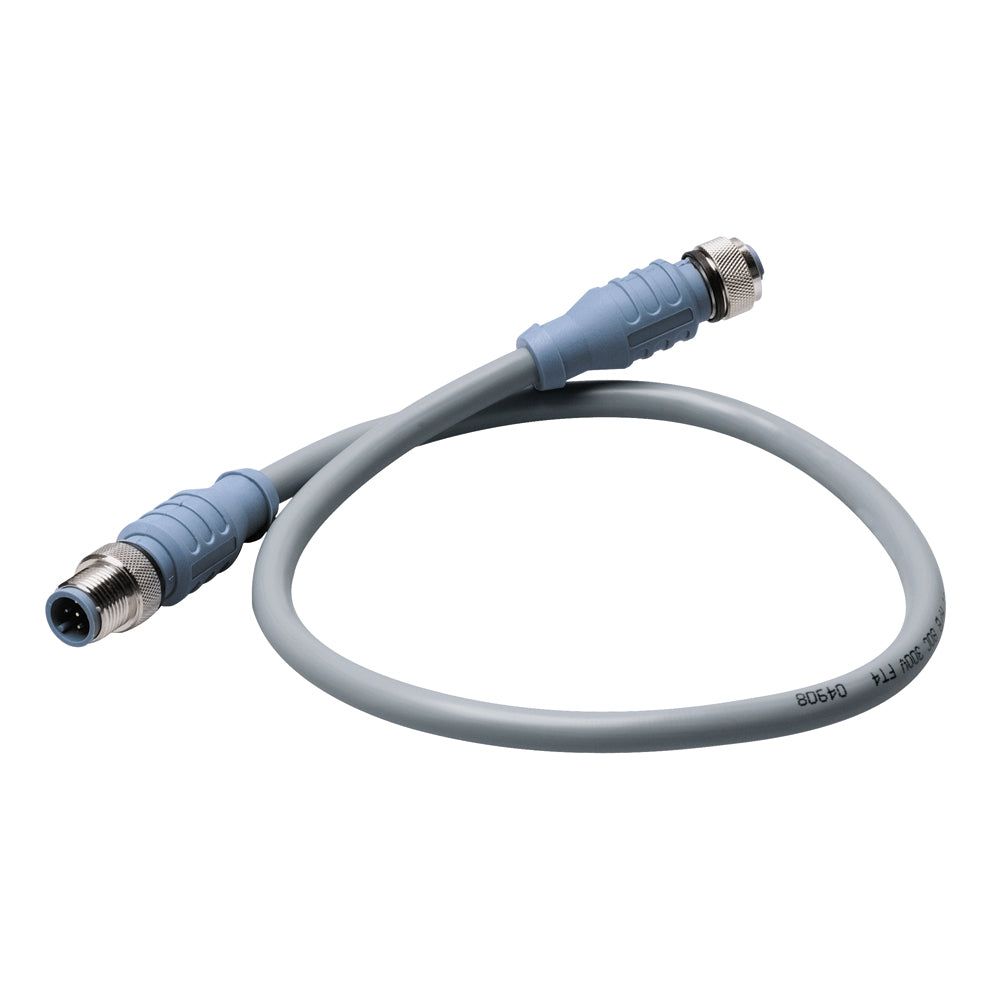

Maretron Micro Double-Ended Cordset 5 Meter [CM-CG1-CF-05.0]

$48.43 $55.00
Shipping calculated at checkout.

Delivery and Shipping

Non-Oversized Items

  • Standard (2-8 days) $9.95 to contiguous 48 states
  • 2-Day (2-3 days) $19.95 to contiguous 48 states
  • Overnight (1-2 days) $49.95 to contiguous 48 states

Oversized Items

  • UPS Ground (2-8 days) $95.00 to contiguous 48 states

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59?Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

    Specifications:

    • Cable Length (Feet): 16'
    • Box Dimensions: 1"H x 6"W x 7"L WT: 0.8 lbs
    • UPC: 873804001555
