Lowrance Fuel Flow Sensor w/10' Cable & T-Connector [000-11517-001]

$237.00
Shipping calculated at checkout.

Delivery and Shipping

Non-Oversized Items

  • Standard (2-8 days) $9.95 to contiguous 48 states
  • 2-Day (2-3 days) $19.95 to contiguous 48 states
  • Overnight (1-2 days) $49.95 to contiguous 48 states

Oversized Items

  • UPS Ground (2-8 days) $95.00 to contiguous 48 states

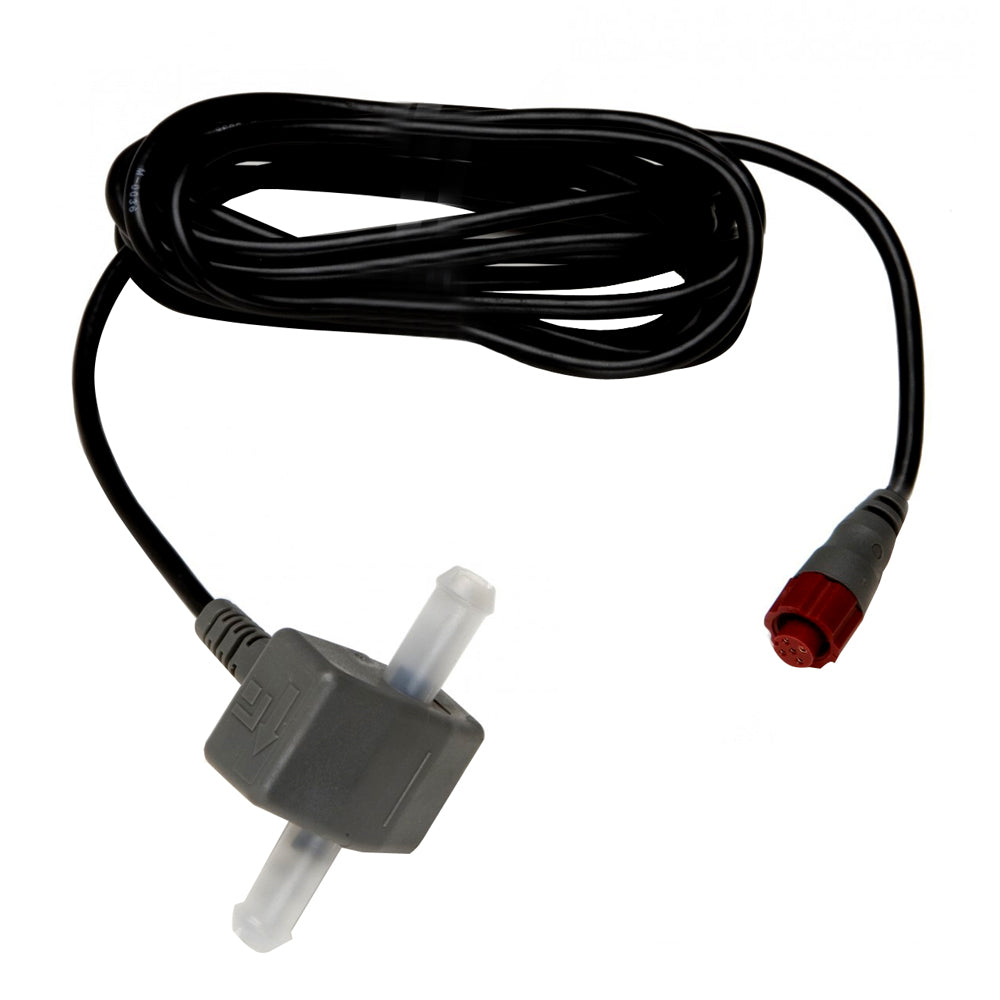

Fuel Flow Sensor with 10' cable & T-connector

Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.

Outputs:

  • Fuel Flow
  • Tank Fuel Used
  • Trip Fuel Used
  • Seasonal Fuel Used


Cable Length: 10'
Fuel Line Diameter: 3/8" (9.5mm) Inside Diameter
Flow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
Package: The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
Fuel Type: Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead: 22mm (7/8")
Multiple Fule Flow sensors possible: Yes
