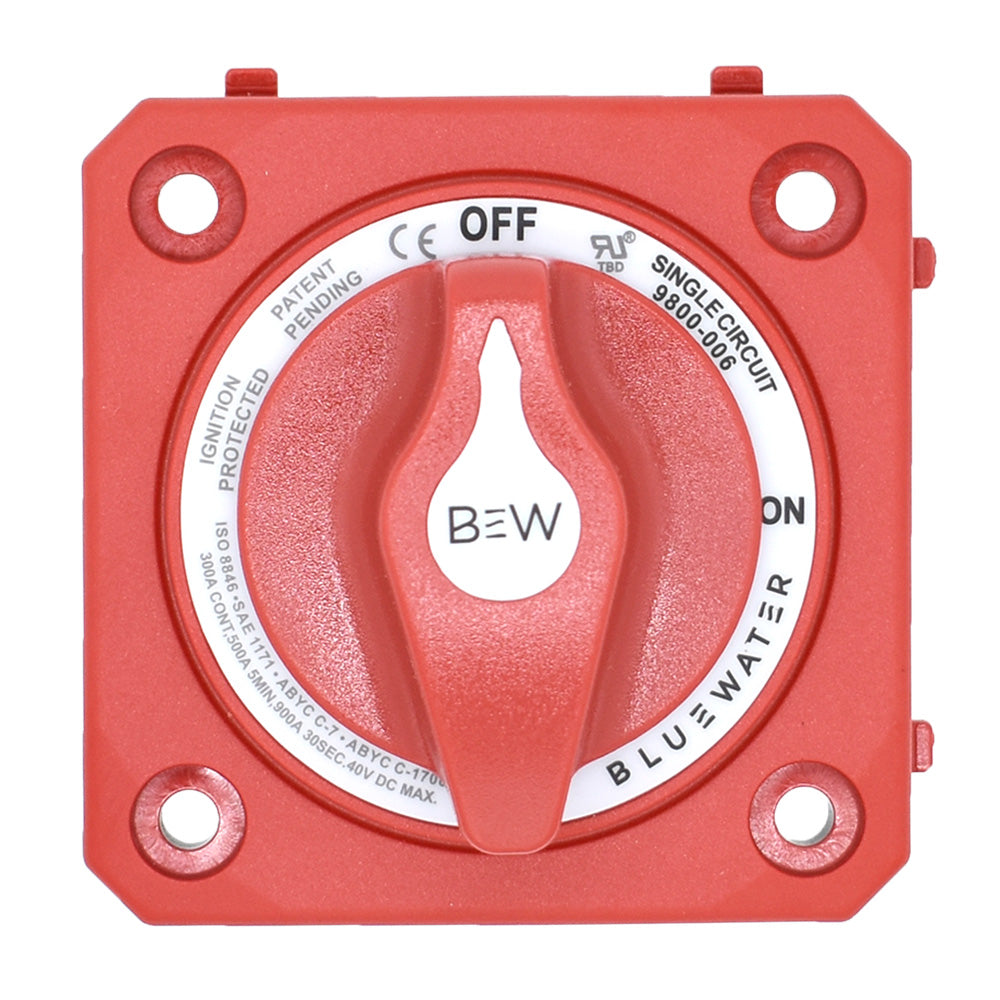

Bluewater On/Off Switch Battery Switch - Panel Mount - Red [9800-006-10]
Bluewater On/Off Switch Battery Switch - Panel Mount - Red [9800-006-10] is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Non-Oversized Items
- Standard (2-8 days) $9.95 to contiguous 48 states
- 2-Day (2-3 days) $19.95 to contiguous 48 states
- Overnight (1-2 days) $49.95 to contiguous 48 states
Oversized Items
- UPS Ground (2-8 days) $95.00 to contiguous 48 states
On/Off Switch Battery Switch - Panel Mount - Red
Simple, reliable, and built for tough environments, this On/Off Battery Switch provides secure control of power to a single circuit. It’s ideal for isolating batteries or equipment when not in use, helping to ensure safety and prevent unwanted battery drain.
Ignition-protected and safe for use aboard gasoline-powered boats, this switch is well-suited for both marine and RV applications. The versatile case design allows for surface, front panel, or rear panel mounting.
Constructed from all non-corrosive marine-grade metals and molded in reinforced polycarbonate, it delivers long-lasting durability in harsh conditions. Tactile knob textures allow users to confirm switch position by feel, and the included international ON/OFF label and ICON label set make circuit identification easy and intuitive.
Specifications:
- Continuous Rating: 300 Amps DC
- Intermittent Rating: 500 Amps DC (5 min)
- Cranking Rating: 900 Amps DC (30 sec)
- Max Voltage: 40VDC
- Cable Size: 4/0 AWG
Specifications:
- Continuous Amperage: 300
- Lockable: No
- Positions: 2
Quick Guide (pdf)
