Veratron Engine Oil Temperature Sensor - 1/2"-14NPT Thread - 150C Temp Range [B002003]

$22.41 $24.90
Shipping calculated at checkout.

Delivery and Shipping

Non-Oversized Items

  • Standard (2-8 days) $9.95 to contiguous 48 states
  • 2-Day (2-3 days) $19.95 to contiguous 48 states
  • Overnight (1-2 days) $49.95 to contiguous 48 states

Oversized Items

  • UPS Ground (2-8 days) $95.00 to contiguous 48 states

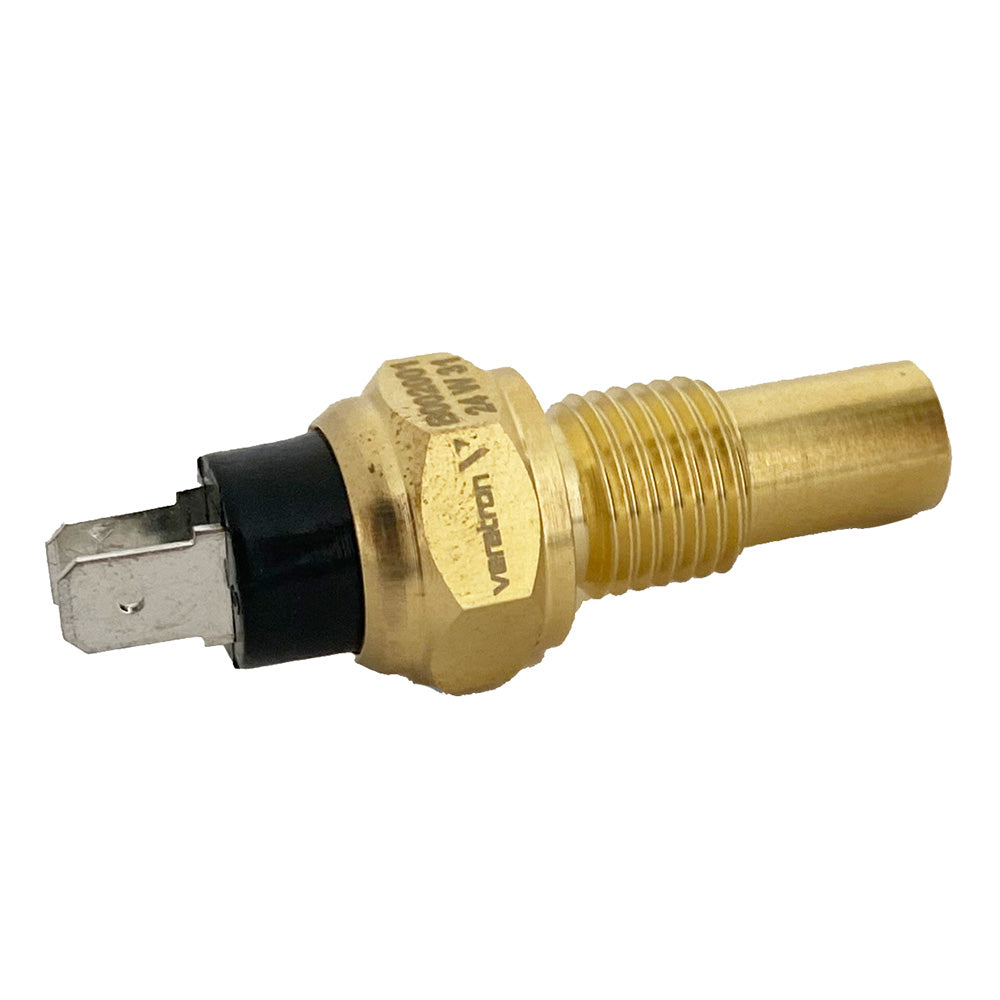

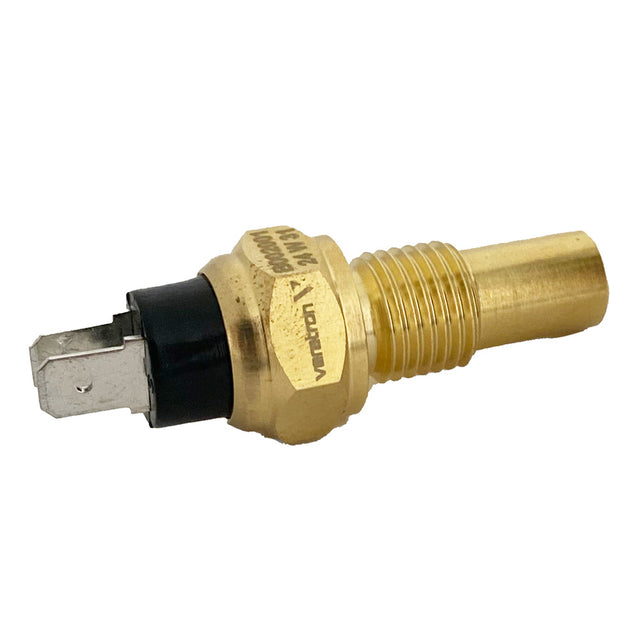

Engine Oil Temperature Sensor - 1/2"-14NPT Thread - 150°C Temp Range

These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.

Features:

  • Function - Oil temperature, coolant temperature
  • Length - 28.5mm (1-1/8")
  • Thread - 1/2"-14NPT
  • Calibration - 150°C
  • Measurement Range - 150°C
  • Output Signals - Resistive
  • IP67
  • Insulated ground pin

Quick Guide (pdf)
