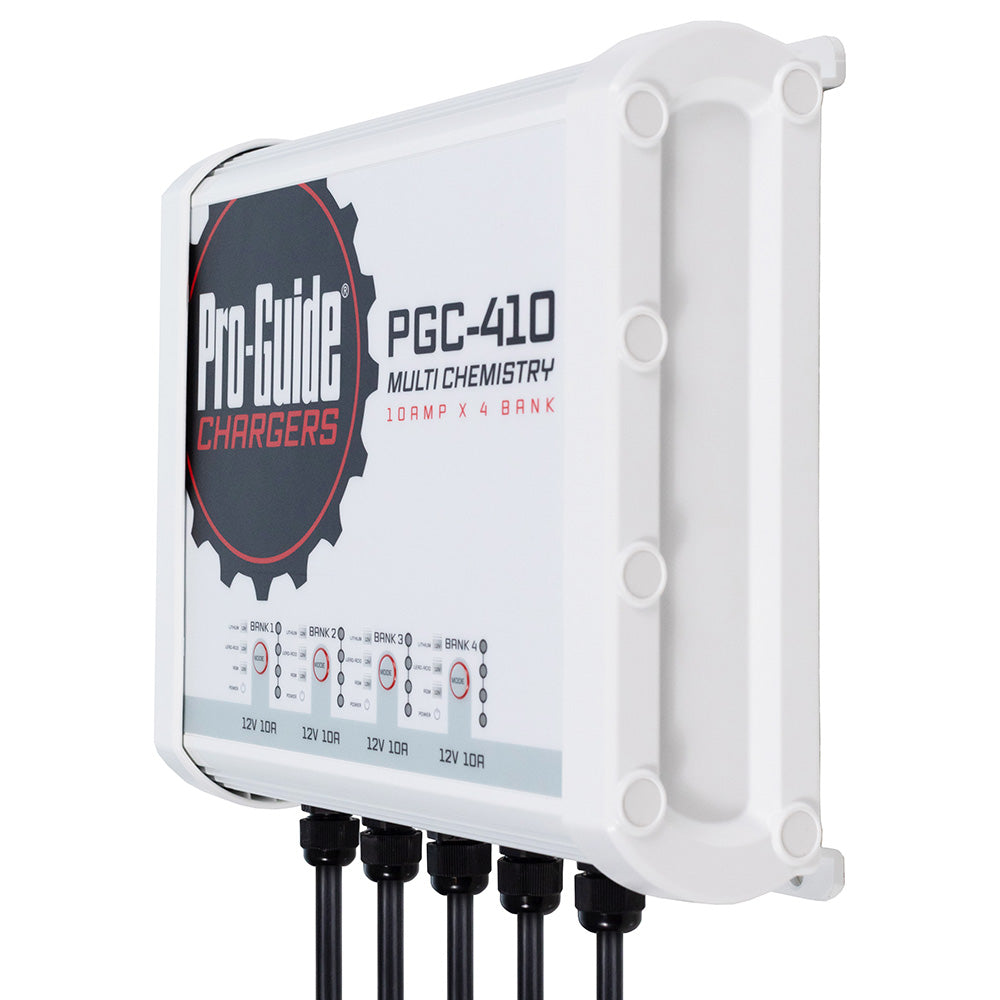

Pro-Guide 4 Bank On-Board Battery Charger - 12V - 40-Amp [PGC-410]

$399.99
Shipping calculated at checkout.

Delivery and Shipping

Non-Oversized Items

  • Standard (2-8 days) $9.95 to contiguous 48 states
  • 2-Day (2-3 days) $19.95 to contiguous 48 states
  • Overnight (1-2 days) $49.95 to contiguous 48 states

Oversized Items

  • UPS Ground (2-8 days) $95.00 to contiguous 48 states

4 Bank On-Board Battery Charger - 12V - 40-Amp

The Pro-Guide PGC-410 is a 12V Lead Acid / AGM / Lithium on-board battery charger.

Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

  • Output Over-Voltage
  • Output Over Current
  • Output Short Circuit
  • Output Reverse Polarity
  • Over Temperature

Input:

  • Input Voltage: AC 110-120V
  • Frequency: 60Hz
  • Input Current: <6A

Specifications:

  • Battery Type: Lead Acid/AGM/Lithium
  • Output Voltage: DC 12V x 4
  • Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery
  • Output Current: 10A  x4
  • Length: 10.71"
  • Width: 9.96"
  • Height: 3.86"
  • Weight: 18.7 lbs
  • IP Rating: 68

Specifications:

  • Charger Input - Voltage: 120v
  • Charger Output - Amps: 40a
  • Charger Output Voltage: 12v
  • Charging Banks: 4
  • Portable: No
  • Box Dimensions: 8"H x 14"W x 14"L WT: 19.5 lbs
  • UPC: 810145910771
